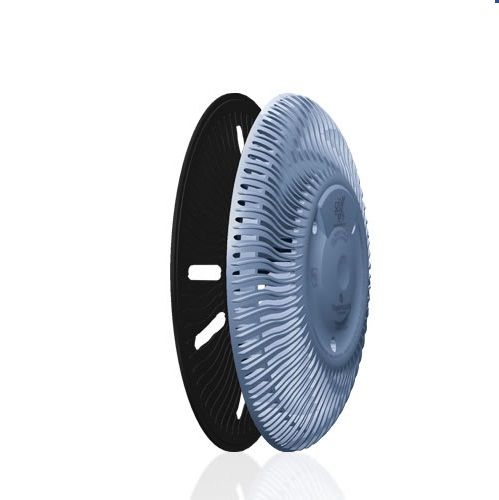

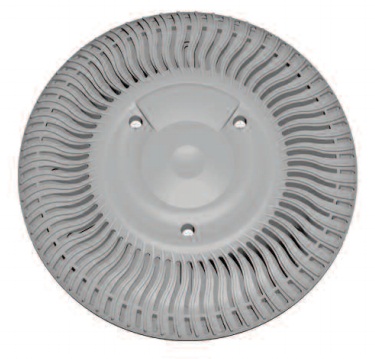

SDX is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A Retro version is available to bring existing suction outlet covers into compliance with the new law. SDX Retro fits existing plaster rings up to 10 in diameter.
FEATURES & BENEFITS
SDX protects against all five types of entrapment; hair, limb, body suction, evisceration, and mechanical entrapment.
NO SUMP REQUIRED - No need to chisel out a sump to meet the1.5 times the pipe diameter sump depth requirement.
SDX has a 1.485 FPS Volocity at the opening at a maximum listed 200 GPM
Approved as a bulkhead fitting so the safety is in the cover and plate.
Patented ribbed design achieves high flow with sixty mini drains
Suction doesnt transfer if one area is covered
Dome shape to prevent a seal by a swimmer
Anti-vortex shield blocks contact with direct suction
Included with MDX as a second point of suction
Retro version fits existing suction outlets up to 10 in diameter
Stainless steel security screws
Secondary support plate secured to protect the sump and fittings
Meets National anti-entrapments requirements
ASME A112.19.8 2007 Listed
IAPMO tested and certified; a nationally recognized testing laboratory (NRTL) accredited by ANSI.
USPC (uniform swimming pool, spa and hot tub code) compliant
IRC (International Residential Code), section 106.2 suction fittings compliant
A Retro version is available to bring existing suction outlet covers into compliance with the new law. SDX Retro fits existing plaster rings up to 10 in diameter.
SDX boasts a flow rating of 200 gpm on the floor and 192 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.
