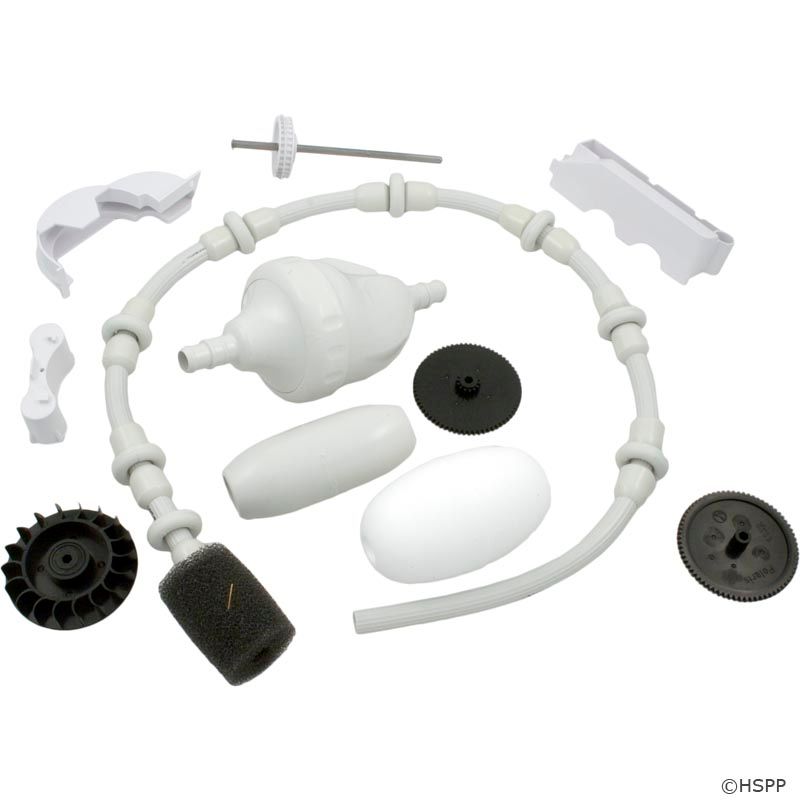

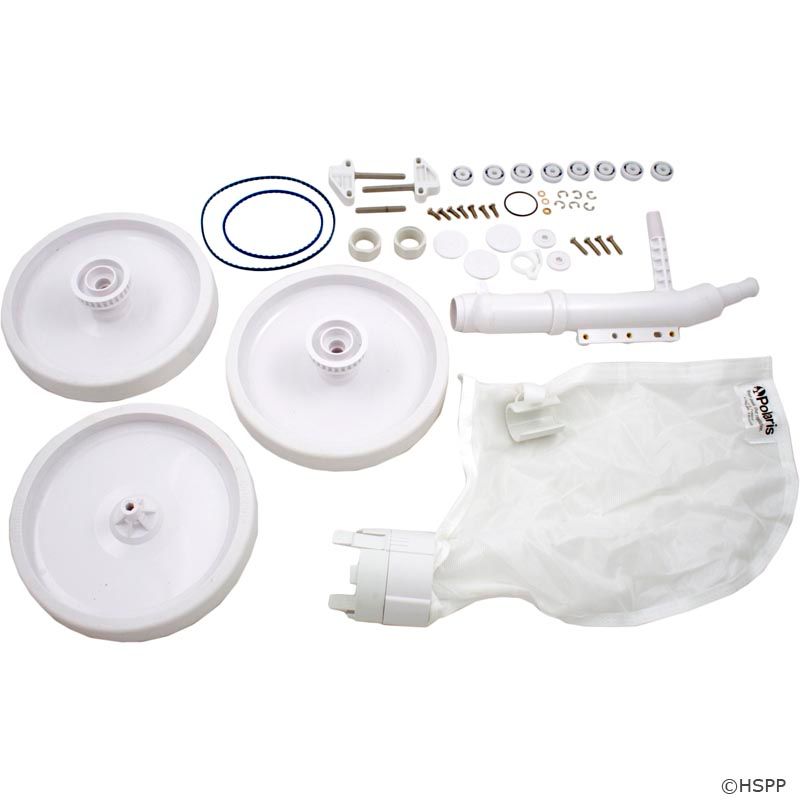

The rebuild kits are factory sealed from Polaris, and come with a manufactures warranty. Don't buy a new pool cleaner! Refurbish your old Polaris Vac-Sweep 380 cleaner by installing a Factory Rebuild Kit. This rebuild kit has everything you need to bring your cleaner back to its original factory condition.
|
No. |
Part No. |
Description |
Qty. |
|
No. |
Part No. |
Description |
Qty. |
||
|
1 |
9-100-1014 |
Zippered All-Purpose Bag |
1 |
|
21 |
C131 |
Thrust Jet Kit |
1 |
||
|
2 |
9-100-1152 |
Housing, Turbine Upper |
1 |
|
22 |
9-100-7008 |
Sweep Hose Barb Complete |
1 |
||
|
3 |
9-100-1114 |
Hub Cap |
3 |
|
23 |
B20 |
Adjustment Screw, Sweep Hose |
1 |
||
|
4 |
9-100-5107 |
E-Clip, Stainless Steel |
10 |
|
24 |
B15* |
Sweep Hose Attachment Clamp |
1 |
||
|
5 |
9-100-1108 |
Ball Bearing |
8 |
|
25 |
9-100-9004 |
Base Weight |
1 |
||
|
6 |
C10* |
Tire, Max TraxR |
3 |
|
27 |
9-100-7009 |
Jet Retainer |
2 |
||
|
7 |
9-100-1008 |
Wheel, Double-Side AZ Pool Supplies |
2 |
|
28 |
9-100-7010 |
Water Management System (WMS) |
1 |
||
|
8 |
9-100-1017 |
Belt Kit, Small and Large |
1 |
|
29 |
9-100-1155 |
Housing, Turbine Lower |
1 |
||
|
9 |
9-100-7011 |
Shield, Bearing |
3 |
|
32 |
9-100-7030 |

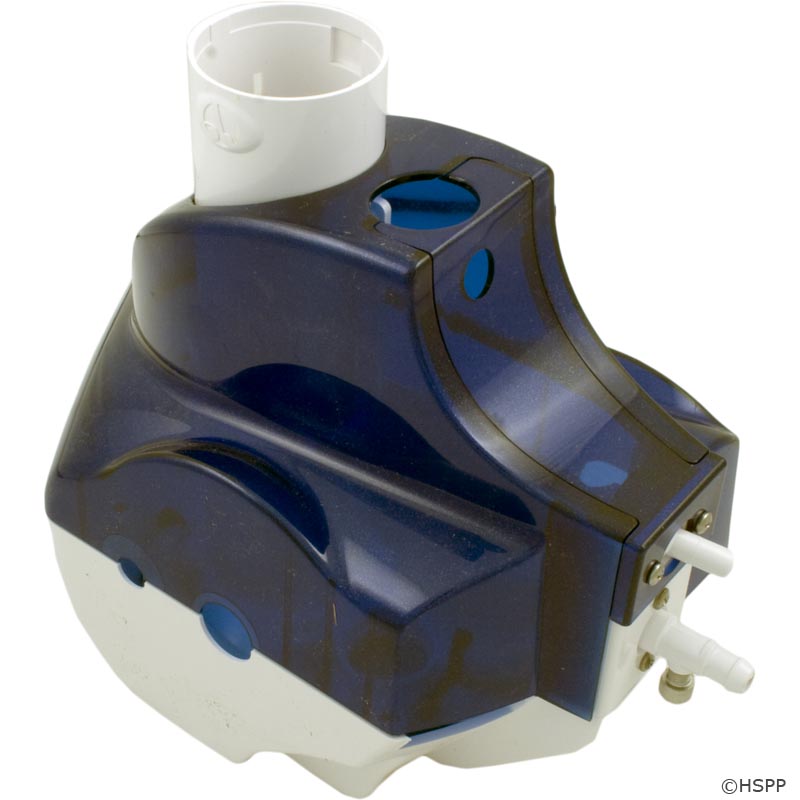

Top and Base Assy |
1 |
||
|
12 |
9-100-1139 |
Axle Block Kit (front and rear) |
2 |
|
33 |
9-100-7003 |
Feed Pipe/Timer Blank Assy |
1 |
||
|
15 |
9-100-1007 |
Trans Pulley/Drive Shaft Assy |
1 |
|
34 |
A20* |
Float, Head |
1 |
||
|
18 |
9-100-1132 |
Drive Train Gear Kit
w/ Turbine Bearing |
1 |
|
35 |
B5* |
Sweep Hose Complete ©AZ Pool Supplies,
Inc |
|
