Manufacturer: Paramount Pool Systems
Item #: 004-192-2231-08
Availability: Available
Regular price: $90.99
Sale price: $64.99
Qty:

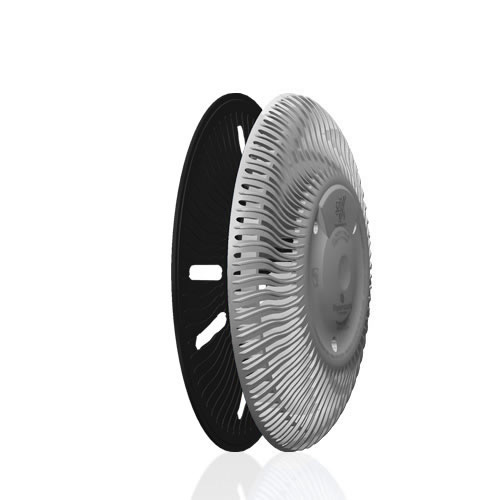

Paramount SDX2 Retro® for Concrete - Light Gray

SDX is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A “Retro” version is available to bring existing suction outlet covers into compliance with the new law. SDX Retro fits existing plaster rings up to 10” in diameter.

SDX boasts a flow rating of 200 gpm on the floor and 192 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.

FEATURES AND BENEFITS:

  • NO SUMP REQUIRED - No need to chisel out a sump to meet the 1.5 times the pipe diameter sump depth requirement.
  • SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.
  • Approved as a bulkhead fitting so the safety is in the cover and plate.
  • Patented "ribbed" design achieves high flow with sixty "mini" drains
  • Suction doesn't transfer if one area is covered
  • Dome shape to prevent a seal by a swimmer
  • Anti-vortex shield blocks contact with direct suction
  • SDX retro can be installed as a single cover with an SVRS installed on the line.
  • "Retro" version fits existing suction outlets up to 10" in diameter
  • Stainless steel security screws
  • Secondary support plate secured to protect the sump and fittings
  • "Equalizer" version eliminates chipping the interior surfaces around equalizer or smaller surface finished suction lines.


The Paramount SDX Retro® for Concrete - Light Gray is a replacement part for your pool for a better and safer swimming experience.


*Replaces part number 004-192-2212-08 / 004192221208
